2023.0.0 to 2023.1.0

1. Modularisation: "type" Property of Projects​

What changed​

The type property in project package JSON files has been moved to a new node. This change prevents conflicts with the type property used by npm.

Why it matters​

Previously, having a type property in the project JSON could clash with npm's usage, potentially causing issues during package management and build processes.

  • Review your project's package JSON files.
  • Update the type property to the new designated node as specified in AID122.
  • Verify that your build and deployment processes work correctly after the change.

2. DB Recordcontainer Property: minimizeCountQueries​

What changed​

A new property minimizeCountQueries has been added to the DB recordcontainer. When enabled, it reduces the number of SELECT COUNT(*)... queries by estimating the number of records based on loaded data.

Why it matters​

Reducing count queries improves performance, especially in large datasets. However, the displayed record counts might be slightly inaccurate if new records are added but not yet loaded.

  • Enable minimizeCountQueries in your DB recordcontainers to improve performance.
  • Be aware that displayed record counts may not always be fully accurate.
  • Test your application to ensure acceptable behavior with the new setting.

3. Label/Value Pairs in ViewTemplates​

What changed​

ViewTemplates now support configuring label and value pairs to be displayed either side-by-side or vertically (label on top).

Why it matters​

This flexibility allows for improved UI design and better readability depending on the context of the data.

  • Use the isLabelTop property in your viewTemplates to control label positioning.
  • Adjust your templates to match the desired layout for your application.

4. ADITO Instance Configuration: Manager Properties and ASYS_PROCESSHISTORY Table​

What changed​

When upgrading, it's necessary to check if ADITO platform added new tables. Specifically, the table ASYS_PROCESSHISTORY should be added to one of your databases to store process history data.

Why it matters​

Storing process history allows you to retain historical data as configured in the instance configuration, which is crucial for auditing and troubleshooting.

  • Open the Designer dialog by right-clicking on a database alias configuration and selecting Organize....

    SYS_Alias_Organize Organize-Button

  • If ASYS_PROCESSHISTORY is not present, add it using the "+" button at the top-left corner.

  • In the configuration, navigate to Modules.

  • Set the processHistoryCollectorAlias to the database containing ASYS_PROCESSHISTORY.

  • Adjust the maximum entries and lifetime settings according to your requirements.

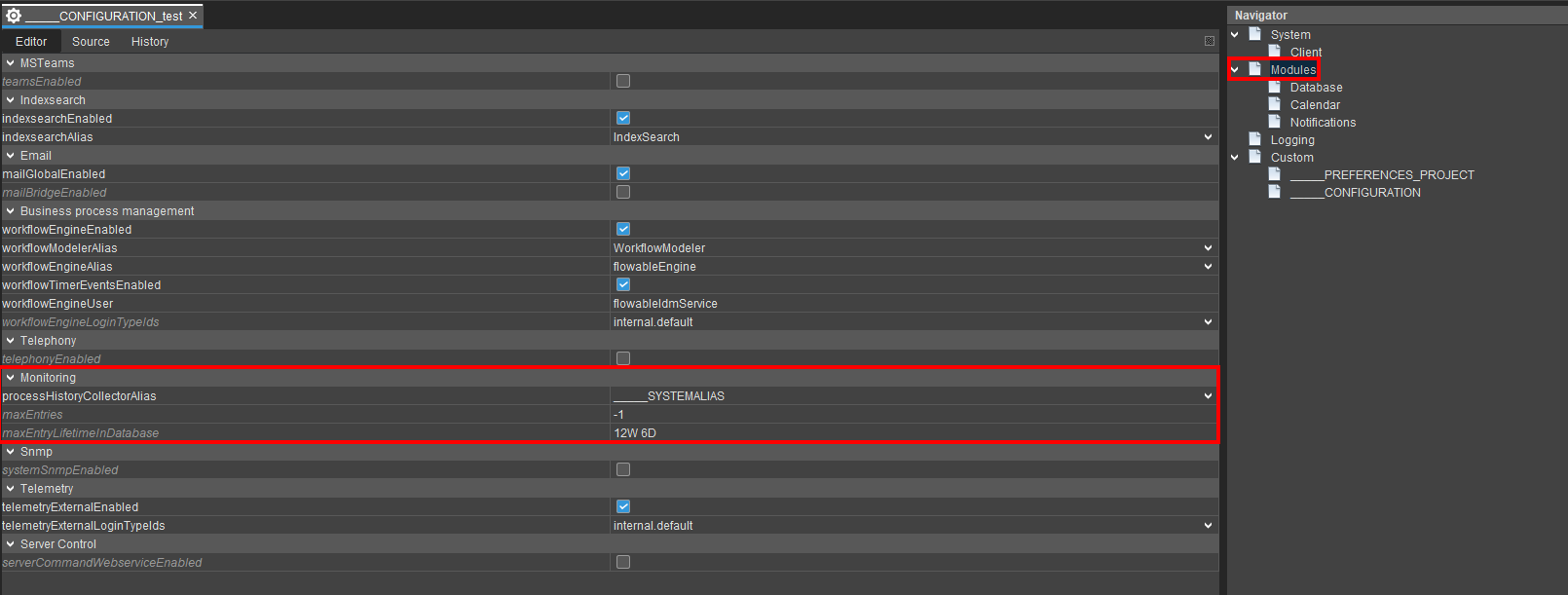

    ASYS Processhistory Example configuration

5. Installation Changes: Designer and Server Separation​

What changed​

From version 2023.1.0 onwards:

  • The ADITO Designer is supplied as a ZIP file.
  • The ADITO server is supplied as a separate installation file without the Designer.

Previously, both Designer and server were included in a single installation file.

Why it matters​

This change enables easier access to the Designer and aligns with the upcoming installation approach starting from version 2023.2.0.

  • For local server setups, configure the connection between the unzipped Designer and installed server via the aditoHomePath property.

  • On Linux and Mac, additionally specify the Java JDK or JRE path in javaHomePath.

  • Edit the ADITODesigner.conf file to set the jdkhome attribute to a valid Java 13 JDK/JRE path, as the ZIP includes only a Windows JRE by default.

    SystemDefaultPaths

  • Manually create shortcuts for the Designer executable on Windows as unzipping does not add start menu entries:

    • Navigate to the Designer’s bin folder.
    • Right-click ADITOdesigner.exe and select Create shortcut.
    • Place the shortcut wherever convenient (desktop, taskbar, start menu).

6. VariableGraph2: New Calculation Logic for JDito Variables​

What changed​

A new property jditoCalculationVersion controls how JDito variables are calculated:

  • V1: Classic calculation logic using static code analysis (default before 2023.1.0).
  • V2: Runtime dependency detection via function calls, including imported libraries and deadlock detection (new default for new systems as of 2023.1.0).
  • V2_FOR_CANARY: Uses V1 by default, but V2 for users with the canary role.

Why it matters​

V2 improves accuracy in dependency detection and prevents deadlocks, enhancing system stability and performance.

  • Locate jditoCalculationVersion in the project preferences:

    • Navigate to preferences > double-click ____PREFERENCES_PROJECT.
    • Find the property under the "JDito" section.

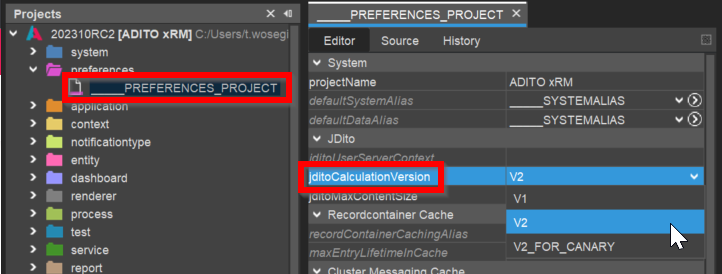

    prefCalculationVersion

  • For existing systems, the default remains V1 after upgrade. Evaluate switching to V2 for improved behavior.

  • Use V2_FOR_CANARY to test V2 with selected users before full rollout.

Testing​

  • Test extensively since V2 may detect dependencies differently, potentially causing changes in variable recalculations.
  • Observe for any unexpected behavior or performance impacts.
  • Users must log out and log back in for changes to take effect.

Canary Role​

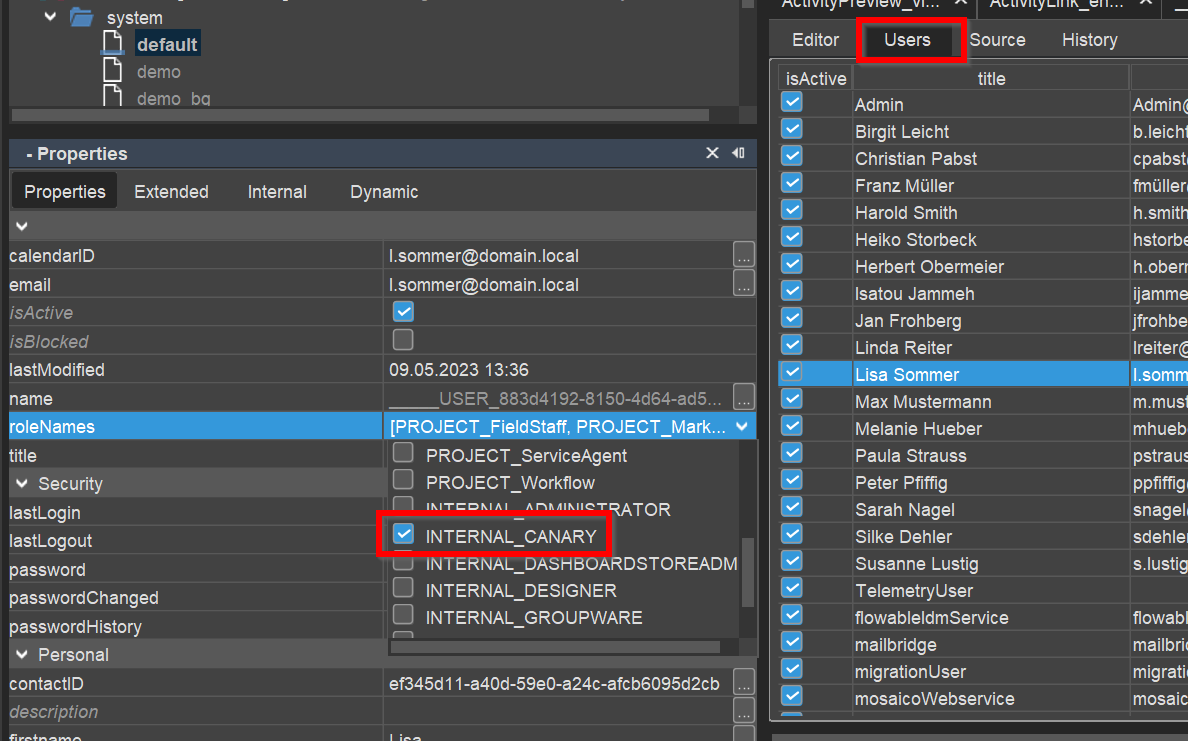

CanaryRole
