Entity

This section covers runtime configuration options that affect how the ADITO server behaves during execution. Proper tuning of these parameters ensures your application runs reliably and efficiently in production environments.

RecordContainer Cache

Use a dedicated RecordContainerCache for each RecordContainer to improve response time for repeated queries. Each cache must be configured individually. This approach minimizes database access and speeds up data retrieval for frequently requested entities.

📖 For implementation guidance, refer to the Customizing Manual, appendix "RecordContainerCache".

---

Image Guidelines

Large images can negatively impact performance, especially when rendering complex datasets in the UI. To maintain fast load times and responsive behavior, follow these image constraints:

• ContainerComponents (e.g., Table, Timeline, Treetable, GenericMultiple):

  • Maximum resolution: 300×200 pixels
  • Maximum file size: < 10 KB

• Other ViewTemplates (e.g., detailed views, dashboards):

  • Maximum resolution: 4000×4000 pixels
  • Maximum file size: < 1 MB

tip

Use modern, compressed formats like WebP or JPEG to reduce file size. Avoid unnecessary high-resolution images for thumbnails or icons.

---

Filtering Behavior

This section applies exclusively to JDitoRecordContainer. When using a DBRecordContainer, filtering is handled automatically.

Client-Side Filtering

Use client-side filtering when:

• The dataset is small
• Low latency is critical
• Users benefit from fast, incremental search

In this approach, all records are loaded into the client memory and filtered locally.

Advantages:

• Very fast filtering after initial load
• Ideal for small, static datasets

Server-Side Filtering

Use server-side filtering when:

• The dataset is large or dynamic
• You need to avoid loading unnecessary data

In this case, each change to the filter term triggers a new query to the database.

Disadvantages:

• Higher load on the database
• Increased latency per filter change
• Issues may arise when filtering translated values

Configuration

Filtering in JDitoRecordContainer is determined by the following properties:

• isRequireContainerFiltering
• isPageable

If either is set to true, filtering occurs on the server.
If both are false, filtering occurs on the client.

tip

Use server-side filtering for large datasets and client-side filtering for small datasets to optimize performance and user experience.

---

Refreshing Behavior

The ADITO platform supports automatic data refreshes, but these rely on correctly configured dependencies such as the Entity’s siblings property or Consumer/Provider relationships.

Avoid Unnecessary Refreshes

Calling neon.refreshAll should generally be avoided. It triggers all dependent processes across all EntityFields, which:

• Increases server load
• Introduces latency
• May execute irrelevant logic

Instead, use implicit and targeted refresh mechanisms like:

• siblings property
• Consumer/Provider links
• Dependency-aware variables such as:

vars.get("$field.MyConsumerName.insertedRows")

These mechanisms ensure efficient refresh behavior without globally reprocessing unrelated logic.

Asynchronous Methods

Avoid combining asynchronous methods like neon.refreshAll and neon.setFieldValue in the same process (e.g., afterSave, onValueChange). Doing so can cause deadlocks due to uncontrolled execution timing.

Use them only in safe, isolated contexts such as onActionProcess.

Refresh from Pending Records

ADITO supports auto-refresh behavior based on interaction with unsaved changes. You can reference pending records via:

• insertedRows
• changedRows
• deletedRows

By referencing these variables, you establish a dependency that triggers an automatic refresh only when changes are detected — improving both accuracy and performance.

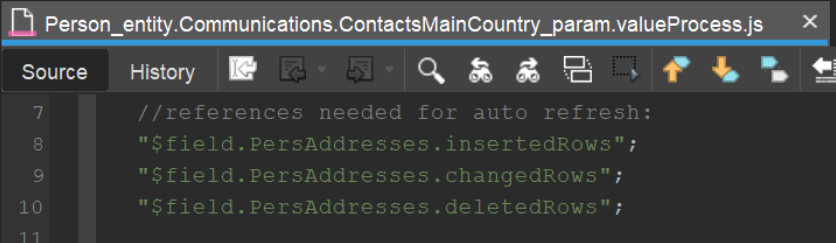

Figure: Example of refresh triggered via consumer dependency

---

Access Rights (Permissions)

ADITO provides a modern, client-based access control system, configured primarily through the User Administration > Contexts section in the Global Menu. This approach allows most permission logic to be managed without writing code.

For advanced or sensitive scenarios, however, programmable permissions are still supported — and may be the preferred solution when role-based configuration is insufficient or too limited.

Processing Grants

Use the grantCreate, grantUpdate, and grantDelete properties only when client-based role permissions are insufficient or too complex.

Avoid these programmable grants when the same logic can be configured via the client UI — the client-based model is more maintainable and optimized for common use cases.

Use programmable grants only if:

• The rule applies universally and is not role-specific
• The logic must enforce strict confidentiality and should not rely solely on client configuration
• The condition is complex (e.g., based on logic not representable as a simple attribute)

Example: Only certain employees are allowed to delete already sent documents.

1. Create a role named DELETE_SENT_DOCUMENT
2. Assign this role to the permitted users
3. In the grantDelete logic, check both conditions:

if (document.isSent() && tools.currentUserHasRole("DELETE_SENT_DOCUMENT")) {
    return true;
}

Client-Based Permissions

Client-side permissions should be your primary mechanism for managing access rights.

Best practices:

• Avoid defining update or delete permissions if read already restricts access
• Keep permission logic minimal and as simple as possible

Incorrect: Redundant logic

• Setting the same complex filters for read, update, and delete
• The server evaluates all three separately, causing unnecessary overhead

Correct: Single responsibility

• Define strict read access
• Let update and delete follow automatically — the user can't modify what they can't see

If separate update or delete rules are necessary, restrict them to only what’s visible after read filters. Avoid duplicating logic across permission levels.

Conclusion

Use Case	Recommended Approach
Standard role-based access control	Client-based permissions
Logic based on roles and attributes	Client-based (if simple)
Complex logic or strict confidentiality	grantXXX properties
Global logic, not user-specific	grantXXX properties

---

List Ordering with LexoRank

For sortable TreeTables that support drag-and-drop reordering, use LexoRank instead of numeric sort fields.

LexoRank generates sortable string values that make it easy to insert new records between existing ones without requiring full re-sorting. This reduces complexity and improves performance, especially in large tables.

Benefits of LexoRank:

• Efficient reordering without reshuffling all rows
• Better performance in UI components with frequent sorting
• Simplified logic for inserts and updates

📖 For implementation guidance, refer to the Customizing Manual – Appendix "LexoRank".
