ResourceTimeline

The ResourceTimeline ViewTemplate provides a calendar-based planning interface with two main areas:

• A tree-structured list of resources (on the left)
• A timeline of scheduled operations (on the right)

This layout is primarily used to manage time-based operations such as service visits, appointments, or internal personnel planning.

---

Functional Overview

The interface consists of:

• Left Pane: A hierarchical tree of resources (e.g., employees, machines)
• Right Pane: A timeline showing operations scheduled for each resource
• Interaction: Entries can be created, updated, or moved via drag-and-drop
• Use Cases: Scheduling of field service technicians, project planning, machine utilization, etc.

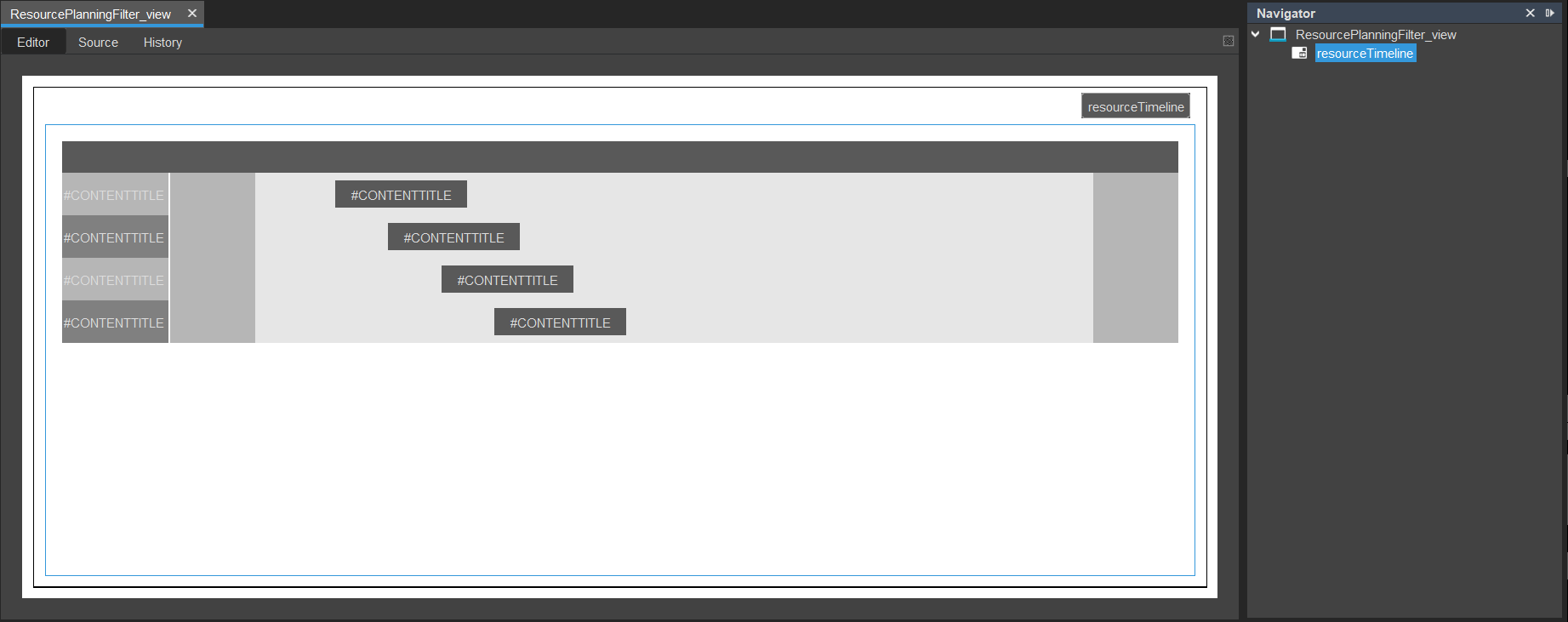

Figure: Example View in the Designer

Figure: Appearance in the ADITO client (External Work > Resource Planning)

---

Entity Model

The ViewTemplate is built upon a three-entity structure:

• Resource Entity: Represents the schedulable unit (e.g., employee, room, equipment)
• Entry Entity: Links a resource to a specific time window and operation
• Operation Entity: Describes the activity or job to be performed

Entity Relationships

Component	Relation
Resource	Can be assigned multiple entries
Entry	References exactly one resource and one operation
Operation	May be shared across multiple entries

---

Configuration Overview

Main Configuration

Property	Description
entityField	Reference to the resource-providing Entity (typically #ENTITY)

---

Resources Section

Property	Description
initialDateField	Optional. Initial date as ISO-8601 string (yyyy.MM.dd)
parentField	Enables tree structure; NULL values are treated as root nodes
businessHoursFromField	Defines start of visible work hours (e.g., "08:00")
businessHoursToField	Defines end of work hours (e.g., "17:30")

note

Working hours define the white range in day mode. Time outside this range is rendered with grey shading.

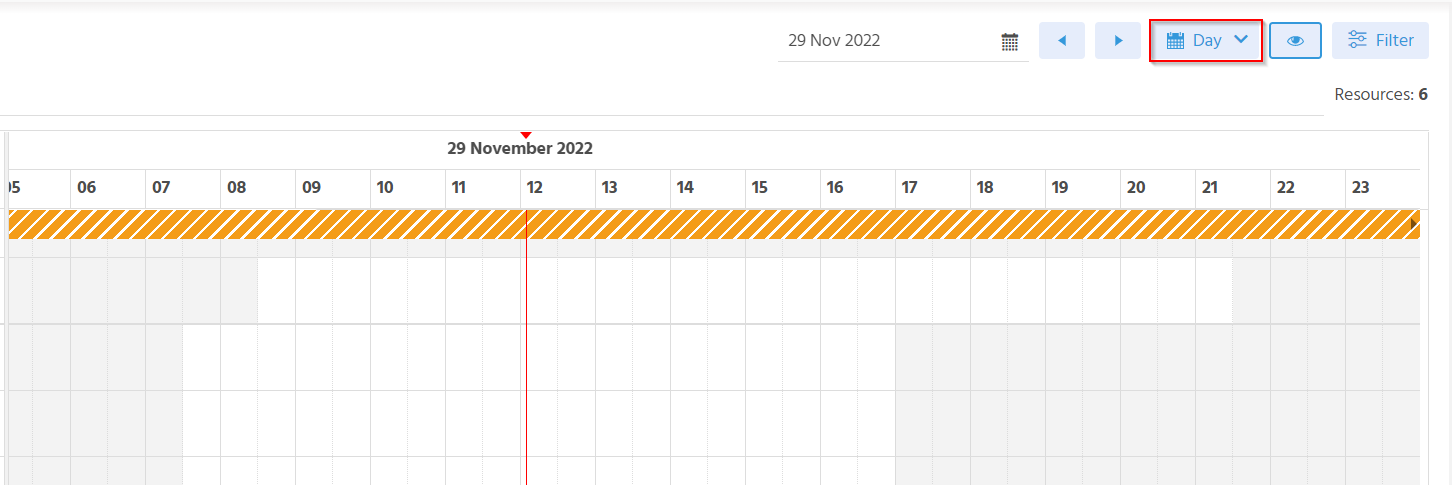

Figure: Visual representation of working hours in day mode

---

Entries Section

Property	Required	Description
entryEntityField	✅	Reference to the Consumer Entity providing the entries
entryResourceIdField	✅	Field containing the UID of the associated resource
entryDatetimeStartField	✅	Start datetime of the entry (DATE type, filterable)
entryDatetimeEndField	✅	End datetime of the entry (DATE type, filterable)
entrySelectedResourcesField		JSON array of selected resource UIDs (optional multi-resource support)
entryResourceOperationIdField	✅	UID of the operation associated with the entry

---

Implementation Notes

Responsibilities of each Entity

Resource Entity (e.g., Resource_entity)

• Provides the list of resources to be shown in the tree
• Acts as the Provider for the Consumer relation with the entry Entity

warning

Disable paging for this entity to avoid tree truncation. Enable caching to improve performance.

Entry Entity (e.g., ResourcePlanning_entity)

• Stores scheduled entry data
• Connects to both Resource and Operation Entities
• Implements logic for:
  • Filtering by date
  • Drag-and-drop editing
  • Handling multi-resource scheduling (if needed)

Operation Entity (e.g., ResourceOperation_entity)

• Represents the task being scheduled (e.g., repair, meeting)
• Often shown in selection lists or dropdowns
• Connected to entries via UID references

---

Example: Minimal Setup

A minimal implementation would include:

• A set of resources with defined availability (working hours)
• Simple operations containing titles or descriptions
• Entries with precise start and end timestamps

Code Example: Drag-and-Drop Update of Resource ID

This logic handles updating the resource UID when an entry is moved via drag-and-drop:

import { result, vars } from "@aditosoftware/jdito-types";

if (vars.get("$field.SelectedResources") && JSON.parse(vars.get("$field.SelectedResources"))?.length > 0) {
  result.string(JSON.parse(vars.get("$field.SelectedResources"))[0]);
}

---

UI Structure

Context	Purpose	Views
ExampleResource	Manage resource Entities	Edit_view, Filter_view, Preview_view
ExamplePlanning	Resource planning interface	Filter_view, Preview_view
ExampleEntry	Entry data maintenance	Edit_view, Preview_view
ExampleOperation	Operation (task) management	Edit_view, Filter_view, Preview_view

---

Color Configuration

Colors are predefined via constants. You can assign them programmatically or override them in your theme.

Active Entry Colors

neon.RESOURCETIMELINE_ACTIVE_COLOR_1
neon.RESOURCETIMELINE_ACTIVE_COLOR_2
neon.RESOURCETIMELINE_ACTIVE_COLOR_3
neon.RESOURCETIMELINE_ACTIVE_COLOR_4
neon.RESOURCETIMELINE_ACTIVE_COLOR_5
neon.RESOURCETIMELINE_ACTIVE_COLOR_6
neon.RESOURCETIMELINE_ACTIVE_COLOR_7
neon.RESOURCETIMELINE_ACTIVE_COLOR_8
neon.RESOURCETIMELINE_ACTIVE_COLOR_9
neon.RESOURCETIMELINE_ACTIVE_COLOR_10
neon.RESOURCETIMELINE_ACTIVE_COLOR_11

Passive Entry Colors

neon.RESOURCETIMELINE_PASSIVE_COLOR_1
neon.RESOURCETIMELINE_PASSIVE_COLOR_2
neon.RESOURCETIMELINE_PASSIVE_COLOR_3
neon.RESOURCETIMELINE_PASSIVE_COLOR_4
neon.RESOURCETIMELINE_PASSIVE_COLOR_5
neon.RESOURCETIMELINE_PASSIVE_COLOR_6
neon.RESOURCETIMELINE_PASSIVE_COLOR_7
neon.RESOURCETIMELINE_PASSIVE_COLOR_8
neon.RESOURCETIMELINE_PASSIVE_COLOR_9
neon.RESOURCETIMELINE_PASSIVE_COLOR_10
neon.RESOURCETIMELINE_PASSIVE_COLOR_11

tip

To align with your corporate design or color strategy, override these constants in the theme configuration of your ADITO instance.
