RecordContainerCache

In order to increase the performance of your ADITO system for repetitive requests of the same data, you can utilize a RecordContainerCache.

note

In ADITO, a cache is always defined separately for each RecordContainer. It is neither possible nor reasonable to cache simply "everything".

important

Only data generated by the RecordContainer can be cached, be it a dbRecordContainer (including "expression" properties), or a jDitoRecordContainer, with its contentProcess. On the contrary, e.g., the data generated or retrieved by the valueProcess of an EntityField cannot be cached (even if it interacts directly with the database!), as the valueProcess is not a part of the RecordContainer.

Basics​

Generally, it makes sense to implement a RecordContainerCache, if

  • data are relatively static (i.e., they do not change permanently)
  • the amount of data is overseeable.
note

Therefore, caching is only possible for RecordContainers that are not pageable.

  • the same set of data is often requested, without any changes, and this is a problem for the system. ** Example 1: The workload of the DBMS is unnecessary high, and the execution speed is slowed down. If data have not changed, it is faster to load them from a cache than from the database. ** Example 2: ADITO is connected to an external, public, open source web service. If data have not changed, it is faster to load them from a cache than to utilize the web service.

Use cases in the xRM project are mostly helper lists, such as keywords, attributes, country-related data, languages, definitions of classifications, currency lists, price lists (if they change only once in a few months), district definitions, or other information related to any configurations.

important

Note that the usage of a cache itself consumes substantial system resources, particularly RAM. Therefore, a solid analysis of the users' behaviour (what data is actually requested repeatedly by whom, and how often is this the case?) and the amount of available RAM is required before deciding whether or not to utilize a cache for a specific RecordContainer.

note

SELECT COUNT queries are generally excluded from caching. Find more information in chapter COUNT queries.

Setup​

By default, a RecordContainer does not use a cache. To activate caching, 2 propertys of the RecordContainer must be configured, which can be found in section "Cache" of the "Properties" window:

  • cacheType
  • cacheKeyProcess
note

As caching is not possible for pageable RecordContainers, these properties are only present, if property "isPageable" is set to false.

Furthermore, there is a project property name maxEntryLifetimeInCache, in order to limit the lifetime of a cache entry.

cacheType​

The following cache types (scopes) are selectable:

  • NONE: No caching. This is the default value for newly created RecordContainers.
  • SESSION: This option is session-specific. One cache store is created separately for each user (assuming that each user opens only one session). The cache store for user A will be different from the cache store for user B. This is useful, if specific users often request specific data, differently from other users.
  • GLOBAL: This option creates a common (shared) cache store for all sessions/users logged into the system. Example: If, for the first time, user A requests certain data, it will be loaded from the database. If, at a later time, user B requests exactly the same data, it will be loaded from the cache store instead of from the datbase - hence the loading process will be faster for user B and all other users requesting the same data.
tip

In most cases, scope GLOBAL fits best to the users' requirements - also in case you utilize multiple languages (in this case, you only need to make sure that your cacheKey includes the locale).

cacheKeyProcess​

In principle, a cache store is a list of key-value pairs, with the key being a unique identifier and the value being the set of requested data. Thus, the result of the cacheKeyProcess must be a unique key representing the requested data. If, e.g., 2 times the same set of data is requested, then exactly the same key must be generated. This enables caching: When a set of data is requested for the first time, it is loaded from the database and saved in the cache store, along with the unique key. When, at a later time, the same set of data is requested a further time, the RecordContainer first uses the same unique key to check the cache store for data associated with this key - and if it is found, it is loaded from there, not from the database.

The following factors influence the data generated by a RecordContainer and hence must be respected when constructing the cache key:

  1. Components that determine, filter, and restrict data:
    • Lists of IDs to be included or excluded in the data query
    • Filters (user filters, search filters, permission filters, etc.)
    • Parameters evaluated in, e.g., the conditionProcess (dbRecordContainer) or rowCountProcess/contentProcess (jDitoRecordContainer).
  2. Components that influence data presentation:
    • Language: Often relevant with RecordContainers, especially during translation of display values (e.g., Keywords).
    • Region: Can be significant in specific cases.
    • Sorting
    • Grouping

Helper functions​

Although, in principle, you are free to construct the cache key as you like (as long as uniqueness is ensured and as long as the same request for a specific set of data always results in the same cache key), it is strongly recommended to utilize the specific helper functions provided by the ADITO platform:

The ADITO library "CachedRecordContainer_lib" (see, "process" > "libraries", in the project tree) already includes a helper class named CachedRecordContainerUtils that consists of several helper functions. These functions return a key string that can be used as result of the cacheKeyProcess. The helper functions read the values of various variables (lists of IDs, filter configurations, etc.) or Parameters and integrate these values into the key. Examples: $local.idvalues, $local.filters, or $param.OnlyActives_param.

If, at the time of the data request, a variable does not exist oder if it contains no value, its name is used instead of the value - which contributes to the requirement to make the key string unique.

All variable values/names are concatinated using a dot (".").

The following helper functions exist:

  • getKey is the basic function. It enables you to define the complete key by yourself (via arbitrary variables as arguments) without the requirement to construct the string manually. In practice, getKey is seldomly used directly in a cacheKeyProcess; rather, it is internally called by the other helper functions (see below).
  • getKeyWithPreset is used, if you want the cache key to respect all criteria that usually influences data, e.g., specific IDs, filters, sortings, and groupings. getKeyWithPreset internally calls function getKey, using the following arguments:
    • (mandatory:) a predefined set of variables (= "preset"), to be specified via a constant defined in class CachedRecordContainerFieldPresets (also part of CachedRecordContainer_lib). In particular, the following constants are available:
      • STANDARD: includes the variables $local.idvalues, $local.idvaluesExcluded, $local.filters, $local.order, and $local.grouped.
      • STANDARD_WITH_LOCALE: includes all variables of constant STANDARD plus (if present) the variable $sys.clientlocale.
    • (optionally:) an arbitrary number of additional variables
  • getCommonKey internally calls function getKeyWithPreset, using the constant STANDARD_WITH_LOCALE (see above). Optionally, you can specify an arbitrary number of additional variables as arguments.
tip

These functions are well-documented: You can learn how to use them by reading their JSDoc. Furthermore, you can learn how they construct the cache key string, by inspecting their source code in the CachedRecordContainer_lib.

Examples in the xRM project​

Examples of the design of a cacheKeyProcess can easily be found, if you simply search the complete xRM project for the string "CachedRecordContainerUtils.get".

Here is an example, used in the jDitoRecordContainer of Attribute_entity:

Attribute_entity.jDito.cacheKeyProcess
import { result } from "@aditosoftware/jdito-types";
import { CachedRecordContainerFieldPresets, CachedRecordContainerUtils } from "CachedRecordContainer_lib";

var key = CachedRecordContainerUtils.getCommonKey(
    "$param.AttributeCount_param",
    "$param.ChildId_param",
    "$param.ChildType_param",
    "$param.FilteredAttributeIds_param",
    "$param.GetOnlyFirstLevelChildren_param",
    "$param.IncludeParentRecord_param",
    "$param.ObjectType_param",
    "$param.ParentId_param",
    "$param.ParentType_param"
);
result.string(key);

Another example can be found in the dbRecordContainer of ResourcePlanning_entity:

ResourcePlanning_entity.db.cacheKeyProcess
import { CachedRecordContainerUtils } from "CachedRecordContainer_lib";
import { result } from "@aditosoftware/jdito-types";

var res = CachedRecordContainerUtils.getCommonKey(
    "$param.OrganisationContactIds_param",
    "$param.PersonContactIds_param",
    "$param.ResourceOperationIds_param"
);
result.string(res);
tip

You can improve your understanding of the generation of the cache key by debugging or logging the results of the cacheKeyProcesses of various RecordContainers of the xRM project, in order to observe the generated key and its structure. Simply play around with, e.g., the filter in the web client, and see how the content of the key changes. Furthermore, for testing purposes, you can also add (further) arguments to one of the helper functions (see above), e.g., new variables or Parameters. Keep in mind that the cache key will only change, if a variable/Parameter actually influences the SQL statement that retrieves the data.

Logged example​

Let's, for testing reasons, include a logging in the dbRecordContainer of KeywordEntry_entity:

KeywordEntry_entity.db.cacheKeyProcess
import { CachedRecordContainerFieldPresets, CachedRecordContainerUtils } from "CachedRecordContainer_lib";
import { logging, result } from "@aditosoftware/jdito-types";

var res = CachedRecordContainerUtils.getCommonKey(
    "$param.ContainerName_param",
    "$param.BlacklistIds_param",
    "$param.OnlyActives_param",
    "$param.WhitelistIds_param",
    "$param.Locale_param"
);

logging.log("------> Keyword Entry (db) Cache Key: " + res);

result.string(res);

Furthermore, make sure that the logging of database queries is active (see chapter Logging).

Now, open Context "Keyword Entry" and define, e.g., the filter "Keyword Category equal AddressType". Then apply the filter and watch the log. Among several other log entries, you should see

the key string generated by the cacheKeyProcess
------------> Keyword Entry (db) Cache Key: en_US._____$local.idvalues._____$local.idvaluesExcluded.{"type":"group","operator":"AND","childs":[{"type":"row","name":"AB_KEYWORD_CATEGORY_ID","operator":"EQUAL","value":"AddressType","key":"1f700fd2-5295-43a9-95ad-e73add4b5086","contenttype":"TEXT"}]}.{}._____$local.grouped._____$param.ContainerName_param._____$param.BlacklistIds_param.false._____$param.WhitelistIds_param._____$param.Locale_param

-> See how the key consists of a mixture of variable/Parameter values (e.g., the filter configuration) and variable/Parameter names (= names of variables/Parameters that do not exist or do not have a value). All variable/Parameter names/values are separated by a dot (".").

the database query used to load the filtered data
SELECT AB_KEYWORD_ENTRY.TITLE , AB_KEYWORD_ENTRY.SORTING , AB_KEYWORD_ENTRY.ISESSENTIAL , AB_KEYWORD_ENTRY.ISACTIVE , AB_KEYWORD_ENTRY.AB_KEYWORD_ENTRYID , AB_KEYWORD_ENTRY.KEYID , AB_KEYWORD_ENTRY.AB_KEYWORD_CATEGORY_ID , ( select AB_KEYWORD_CATEGORY.NAME from AB_KEYWORD_CATEGORY where AB_KEYWORD_CATEGORY.AB_KEYWORD_CATEGORYID = AB_KEYWORD_ENTRY.AB_KEYWORD_CATEGORY_ID )  AS CATEGORY_NAME   FROM AB_KEYWORD_ENTRY   WHERE AB_KEYWORD_ENTRY.AB_KEYWORD_CATEGORY_ID = '1f700fd2-5295-43a9-95ad-e73add4b5086'   ORDER BY CATEGORY_NAME , AB_KEYWORD_ENTRY.SORTING , AB_KEYWORD_ENTRY.TITLE , AB_KEYWORD_ENTRY.AB_KEYWORD_ENTRYID

Subsequently, load the same data again, simply by clicking on the "refresh" button of your browser. Then, in the log, you can see the same key string again, but not the database query - which proofs that the cache is effective, as the repeatedly requested data has been loaded from the cache store, not from the database. Q.E.D.

Cache invalidation​

In specific cases, it can be required to invalidate (= delete) the cache store (or parts of it) of a specific Entity. In particular, this is required, in order to avoid

  • outdated cache store entries
  • allocation of too much memory (RAM)

ADITO includes various automatisms and manual options in order to perform a cache invalidation, some of which refer to

  • an individual cache store entry or
  • the complete cache store of a specific RecordContainer or
  • all cache stores of all RecordContainers of a project

Automatically​

RecordContainer-specific​

The ADITO platform includes an automatic cache invalidation, which is executed whenever data is changed (inserted, updated, or deleted) via a specific RecordContainer.

Example: The dbRecordContainer of KeywordEntry_entity caches all requests of keyword entries. Now, when, e.g., the keyword entries of a specific keyword category have been cached (see chapter Logged example) and later the user adds a further keyword entry refering to the same keyword category, then the cache store of the dbRecordContainer of KeywordEntry_entity is outdated and must be refreshed - which is automatically initiated by the ADITO platform: The cache is deleted, in order to load the fresh data from the database (and cache it again), as soon as a user requests data of KeywordEntry_entity again. Thus, the cache store is now refreshed and provides the correct data for further requests.

maxEntryLifetimeInCache is a project-related property (see project tree: preferences > PREFERENCES_PROJECT), which defines the amount of time an individual cache entry remains in any cache store of any Entity. Here, you can optionally change the default value to a value more suitable for your project. The property description explains the syntax, e.g., "1D 42M" means "1 day and 42 minutes".

This value needs to be set with great care:

The larger this time span is,

  • the more data requests (cache store entries) are collected in the cache store, and thus the higher ("wider") is the effect of the cache; but
  • the more memory (RAM) is required, and
  • the higher is the probability that the user works with outdated data (in cases when, by mistake, there is neither an automatic nor a manual cache invalidation, see the other sub-chapters of this topic)

The smaller this time span is,

  • the less data requests (cache store entries) are collected in the cache store, and thus the lower ("narrower") is the effect of the cache;
  • the less memory (RAM) is required, and
  • the lower is the probability that the user works with outdated data (in cases when, by mistake, there is neither an automatic nor a manual cache invalidation, see the other sub-chapters of this topic)

Therefore, the value of maxEntryLifetimeInCache needs to be set strictly according to the usual influencing factors, particularly

  • the expected user behaviour, e.g.,
    • the expected frequency of data changes;
    • the expected kind and frequency of data requests;
  • the memory (RAM) available for the ADITO system.

Manually​

Besides the built-in automatic cache invalidation (see above), there are cases that require a manual cache invalidation. In particular, these are cases in which

  1. data is changed (inserted, updated, deleted) independent from the invalidation automatisms of the RecordContainer. This happens, e.g., when the database is modified via direct SQL statements (using, e.g., db.XXX methods or the SqlBuilder), instead of using the RecordContainer-utilizing methods of "Write Entity" (see appendix chapter WriteEntity). A common use case is the inserting, updating, or deletion of data via an importer, which (for performance reasons) might use direct SQL statements.
  2. the change of data of a specific Entity influences another (dependent) Entity. Example: If you add a new keyword category via the KeywordCategoryEdit_view, then the cached list of available keyword categories shown in the KeywordEntryEdit_view needs to be updated, in order to include also the new keyword category (see code example below).

In these kinds of cases, method invalidateCache(<name of Entity>, <name of RecordContainer>) must be executed. Here is an example from the ADITO xRM project:

KeywordCategory_entity.db.onDBInsert.js

import { entities } from "@aditosoftware/jdito-types";

//dependecies are updated so the cache needs to be updated
entities.invalidateCache("KeywordEntry_entity", "db");

If (in rare cases) it is required to invalidate all RecordContainerCaches of the complete project, simply execute method invalidateCache() without arguments. Here is an example from the ADITO xRM project, where a specific server process uses this method call:

mark_cachedrecordcontainers_invalid_serverProcess.process.js
import { entities } from "@aditosoftware/jdito-types";

entities.invalidateCache();

Shared caching with multiple ADITO servers​

If your system includes multiple ADITO servers, it would be negative, if each server used only its own local cache store, independently from the cache stores of the other servers. In this case, server A had no information what happens on server B, and vice versa.

Rather, a shared (remote) cache must be applied, by utilizing a remote cache server. This server makes sure that all data requests in all sessions use one single (shared) cache store. (To be more precise: Internally, every server still has a local cache, called "NearCache", in order to reduce latency for accesses of the remote cache - but this architecture can be ignored here; it is enough to imagine the remote cache server as providing one single cache store, shared between all sessions of all servers.)

Example: Given, in a multi-server environment, a cache of type GLOBAL has been configured for the RecordContainer of a specific Entity. User A logs in, which opens a session on, say, server A; user B logs in, which opens a session on, say, server B. Now, if user A requests a specific set of data of the respective Entity, then these data are loaded from the database and cached. Now, if every server used its own local cache and user B, subsequently, requests the same set of data, then the data would, again, be loaded from the database and cached a second time, this time on server B. If, however, the ADITO system utilized a remote cache server, then the data requested by user A would be stored in the shared cache store, and the (same) data requested by user B would be found and loaded from there - not again from the database.

note

Using a shared cache only makes sense for caches of type GLOBAL. Caches of type SESSION are always restricted to one single session, and caches of other sessions are ignored, be they running on the same server or on other server - even if a remote cache server is active.

Therefore, each managed ADITO cloud system, by default, comes with an alias for a pre-configured, ready-to-use remote cache server. Its alias is named "RecordContainerCache" - see the AliasConfig (double-click on system > default, after the tunnel has been established):


If this remote cache alias is not present yet, you need to add it first:

  1. In the project tree, right-click on node "alias" and choose "New" from the context menu. alias_new.png

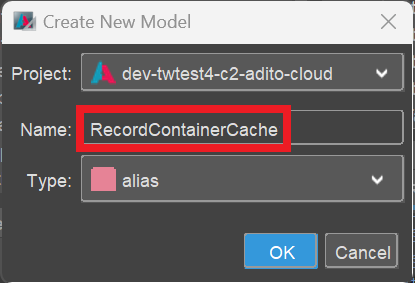

  2. A dialog named "Create New Model" appears. Here, type in a suitable name (e.g., "RecordContainerCache"). new_model_alias.png

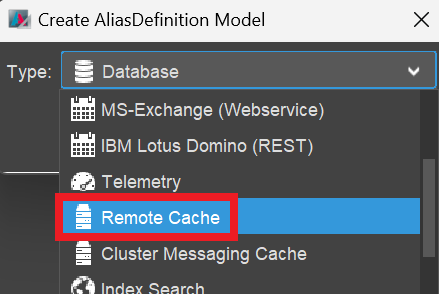

  3. A dialog named "Create AliasDefinition Model" appears. Here, select the type "Remote Cache". create_aliasdefinition_model.png

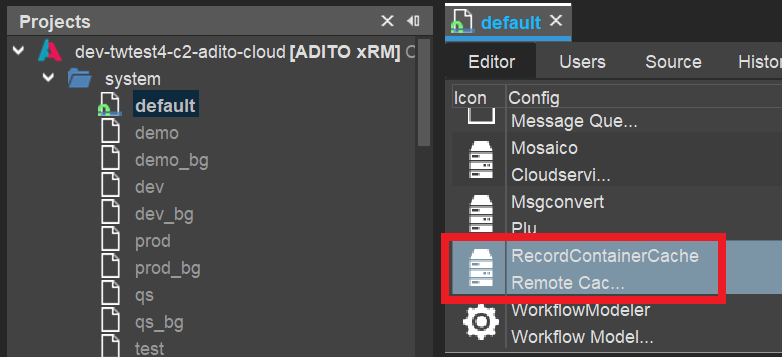

  4. Deploy your project. Then, the new alias appears in the AliasConfig.

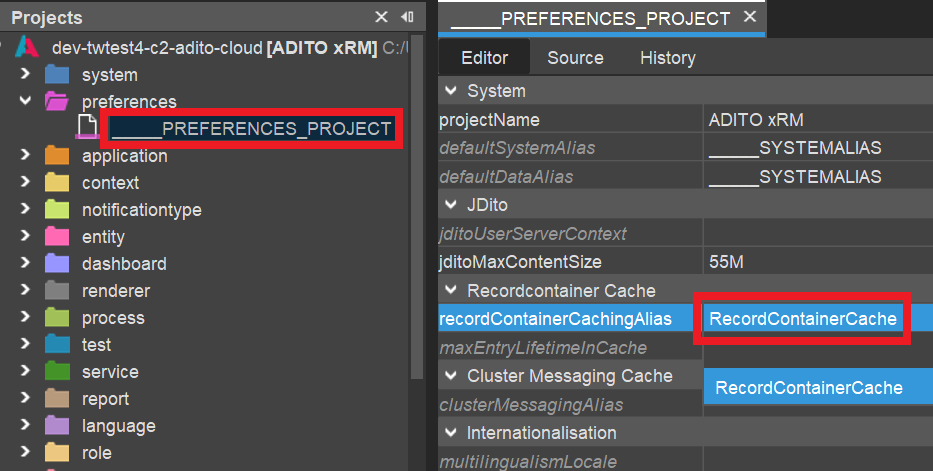

Now, check if the cache alias is set as value of the project property "recordContainerCachingAlias" (see preferences > ____PREFERENCES_PROJECT, in the project tree):


If it is not set yet,

  1. set it now,
  2. deploy your project,
  3. restart the ADITO server,
  4. re-establish the tunnel to your cloud system,
  5. reconnect to your your system, in order to see the AliasConfig again.

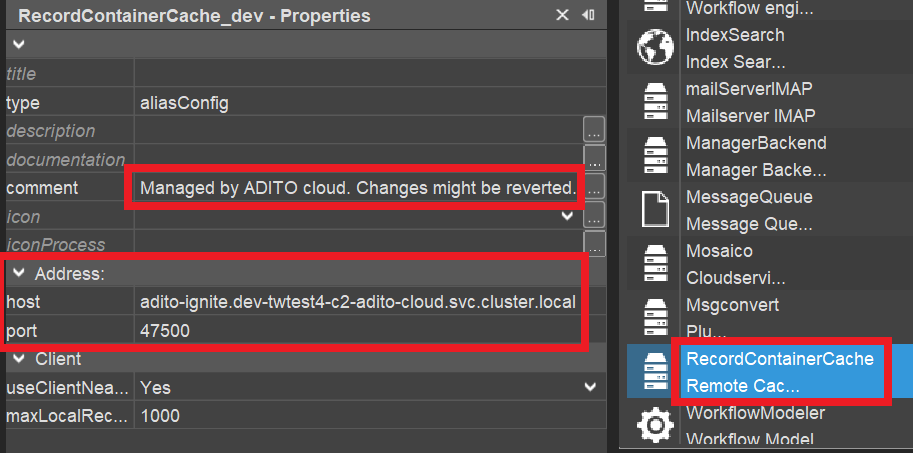

Now, if you click on the cache alias in the AliasConfig, you can inspect its properties in the "Properties" window. Here, you should see that the address of the cache server (properties "host" and "port") has been set automatically:


note

This semi-automatic activation of a remote cache server only works for managed ADITO cloud systems, as these systems by default come with a pre-configured, ready-to-use installation of a remote cache server. If, however, your system is an unmanaged cloud system, you first need to order the transformation of your system to a managed cloud system from ADITO.

warning

ADITO does not offer support of integrating remote cache servers into "on premise" (not cloud-based) systems. Although, in principle, this is possible, the installation of the cache server and its integration as remote cache server must be realized by the customers themselves.

Alternative cache servers​

By default, every managed ADITO cloud system comes with an installation of Apache Ignite as pre-configured, ready-to-use remote cache server. (Besides, ADITO utilizes Ignite also as cluster messaging server, see chapter "Notifications with multiple ADITO servers" of the Customizing Manual (PDF).) In principle, you can also use other kinds of remote cache servers, but their installation and integration is not supported by ADITO (except for providing properties for the remote cache server's host and port; see above).
